FRD Sensor FD80D Compact Pressure Transmitter | High Stability Industrial Pressure Sensor

Pressure Type : Gauge pressure

Model Number : FD80D

Long-Term Stability : 0.2% F.S per year

Communication Protocol : MODBUS RTU protocol, HART protocol

MOQ : one piece

Packaging Details : Carton Package/Wooden Crate Package

Working Temperature : -20℃ ~ 70℃

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Overload Pressure : 1.5 times full-scale

Certification : IP65

Accuracy : 0.25% F.S

Place of Origin : China

Power Supply : 18V ~ 30V DC (24V DC power supply recommended)

Warranty Period : 12 months

Supply Ability : Production output can be flexibly adjusted according to order quantity.

Output Signal : 4mA ~ 20mA DC, 1V ~ 5V DC

Protection Level : IP65

Delivery Time : 5-8 work days

Range : 0-100kPa ~ 7MPa (For details, please refer to the selection table)

Brand Name : FRD

Electrical Connector : GDM Connector, M12x1 Aviation plug

Contact Now

1. Introduction

FRD Sensor FD80D Compact Pressure Transmitter is designed for accurate and reliable pressure measurement in industrial applications. With a compact structure, high stability, and excellent adaptability, it is widely used in automation equipment, hydraulic systems, and industrial machinery.

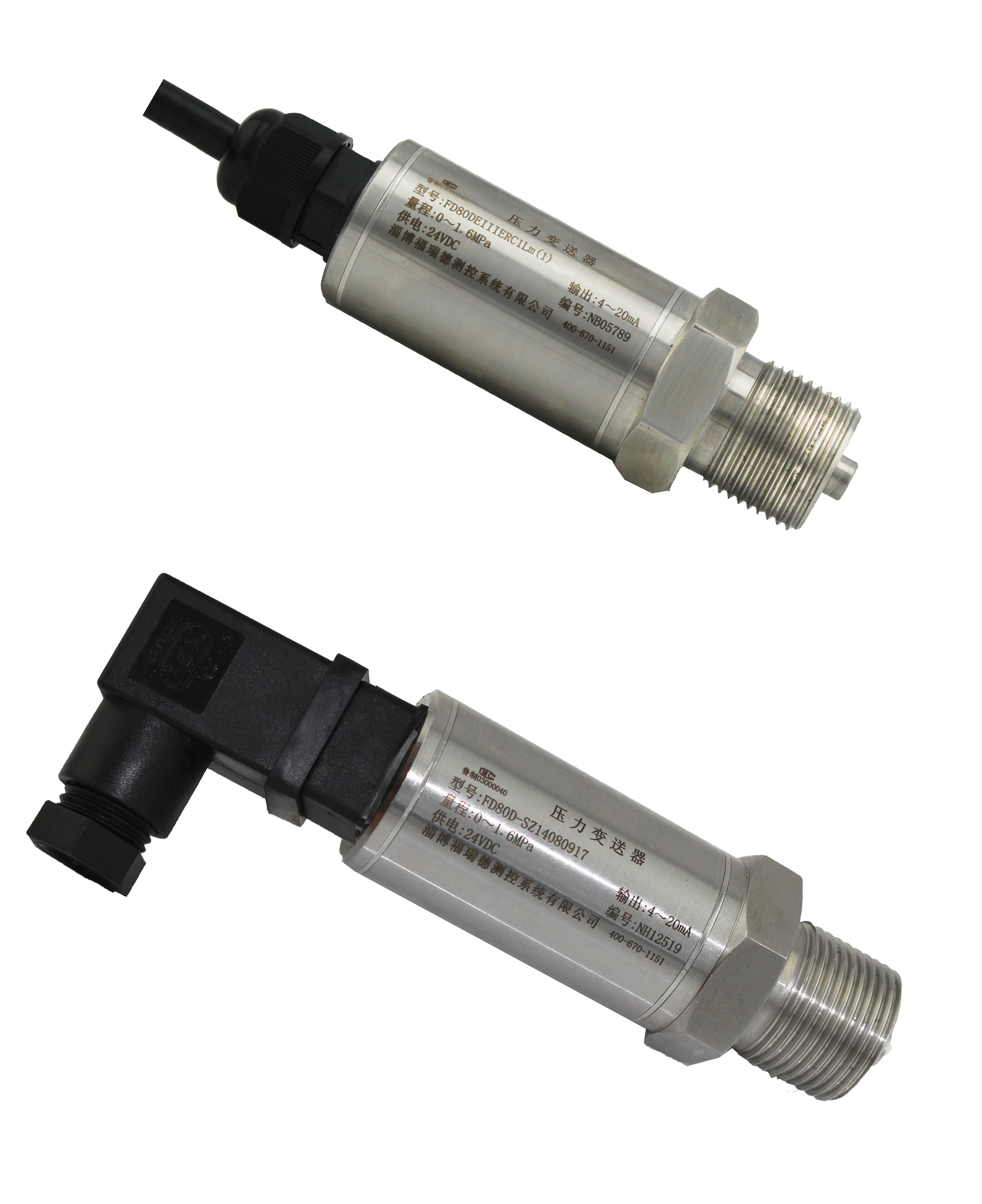

FRD Sensor FD80D Compact Pressure Transmitter | High Stability Industrial Pressure Sensor

2. Why Choose This Model?

Traditional pressure transmitters may face challenges such as limited installation space, unstable signals, and difficult integration into compact equipment.

FRD Sensor FD80D solves these problems through:

Compact Structure
Small size design makes installation easier in space-limited applications.

Stable Measurement Performance
Provides reliable output and reduces signal fluctuation during long-term operation.

Easy System Integration
Supports flexible installation and connection for different equipment systems.

Wide Application Compatibility
Suitable for automation equipment, hydraulic systems, and industrial machinery pressure monitoring.

3. Model Comparison Table

Technical Parameters

	FD 80D	FD80A
Range	0-100kPa ~ 7MPa (For details, please refer to the selection table)	0-5kPa ~ 260MPa (see the selection table for details)
Pressure Type	Gauge pressure	Gauge pressure, absolute pressure, negative pressure (optional)
Overload Pressure	1.5 times full-scale	1.5 times the sensor range is allowed (1.2 times for ranges above 60MPa)
Accuracy	0.25% F.S	±0.1%F.S, 0.25%F.S, 0.5%F.S (optional)
Long-Term Stability	0.2% F.S per year	0.2%F.S per year
Working Temperature	-20℃ ~ 70℃	-20℃ ~ 70℃
Power Supply	18V ~ 30V DC (24V DC power supply recommended)	10V ~ 30V DC (24V DC power supply is recommended)
Output Signal	4mA ~ 20mA DC, 1V ~ 5V DC	4mA ~ 20mA DC, 1V ~ 5V DC, RS485, etc. (optional)
Communication Protocol	MODBUS RTU protocol, HART protocol	4mA ~ 20mA DC, 1V ~ 5V DC, RS485, etc. (optional)
Electrical Connector	GDM Connector, M12x1 Aviation plug	GDM connector, aviation connector, cable gland with direct lead, IP68 protection cable with direct lead
Protection Level	IP65	IP65, IP68
Warranty Period	12 months	12 months

4. FRD Sensor FD80D OEM & ODM Customization Services

FRD Sensor provides professional OEM & ODM customization services for the FD80D Compact Pressure Transmitter.

According to different application requirements, FRD Sensor can customize pressure range, output signal, electrical connection, pressure port, and structural design.

With advanced manufacturing technology and strict quality control, FRD Sensor delivers reliable customized pressure measurement solutions for global customers.

5. FRD Sensor FD80D Differential Pressure Transmitter Measurement Accuracy Troubleshooting Guide

When the FD80D Pressure Transmitter shows inaccurate readings, unstable signals, or output deviation, the following checks can help identify the cause:

First, check whether the installation and pressure connection are correct. Incorrect installation may affect measurement accuracy.

Second, check the power supply and wiring condition. Poor connections or electrical interference may cause unstable output signals.

Third, verify whether calibration deviation or environmental temperature changes affect measurement performance.

Regular calibration and proper maintenance can ensure long-term stability and reliable operation of the FD80D Pressure Transmitter.

6.Typical Applications

Compact Pressure Transmitter for Industrial OEM and Machinery Applications
High-Precision Compact Pressure Transmitter with 4-20mA and HART Output
Miniature Industrial Pressure Transmitter for Fluid and Hydraulic Systems

7. Product Certifications

8. Conclusion

FRD Sensor FD80D Compact Pressure Transmitter combines compact design, stable performance, and flexible installation to meet the requirements of modern industrial pressure measurement.

With professional OEM & ODM customization capabilities and reliable technical support, FRD Sensor provides efficient and dependable pressure measurement solutions for global industrial customers.
